คำอธิบาย
| Brand | BENQ |
| Model | WDC10 |

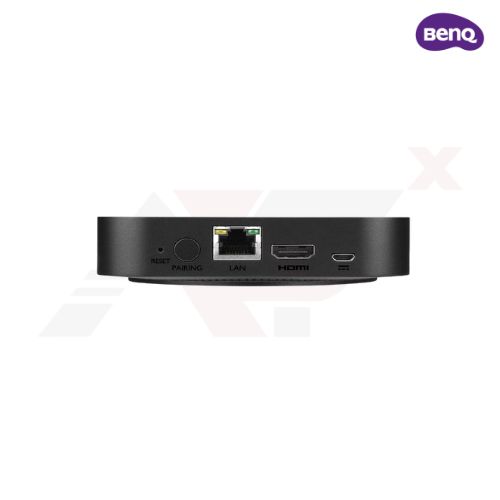

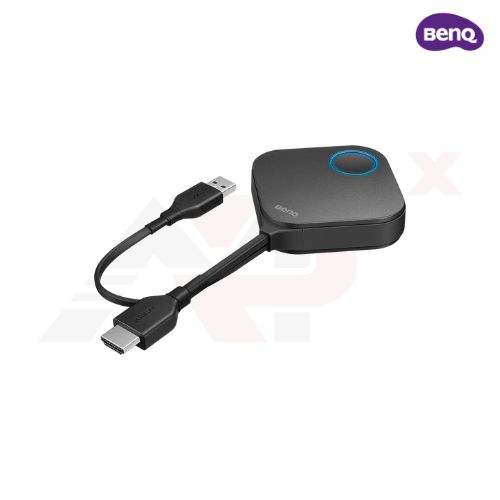

| Interfaces | InstaShow Button USB Type A, HDMI Cable Reset Button x1 Mode Key x1InstaShow Host Power Button x1 Paring Key x1 LAN x1 (10/100 Mbps) Video Output x1 HDMI 1.4 (video and audio) |
| Input Resolution | Resolution : Up to 1920×1080 Simultaneous Connections : 16 pcs |
| Output Resolution | Video Outputs : HDMI 1.4, comply with HDCP Frame Rate : Up to 60 fps depending on environment Resolution : 800 x 600, 1280×720 (720P),1024 x 768 (XGA),1280 x 768,1280×800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x 900,1400 x 1050,1680 x 1050, 1920×1080 (1080p) |
| Audio | Stereo, Radio quality 16 bits 48KHz |
| Wireless | IEEE 802.11ac, 5GHz, 2T2R / Up to 867mbps Reach : Max. 8m between InstaShow Button and InstaShow Host |
| Network | InstaShow Host 1 x LAN (10/100 Mbps) |
| LED Indicators | InstaShow Button *Red (boosting), Green (wifi connected), Blue (presenting)InstaShow Host *Red (boosting), Green (ready for connection), Blue (presenting) |
| System Supported | Windows, MAC, Chrome. Any OS supports HDMI standard 1.4 |

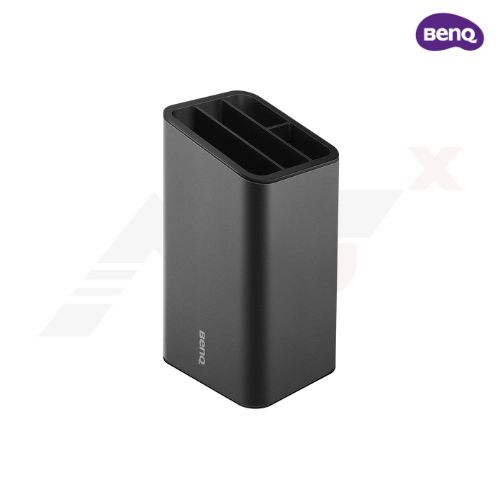

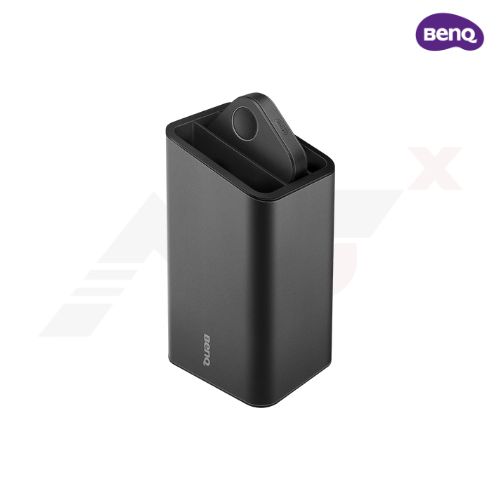

| Features | InstaShow Cradle Dimension (WxHxD) : 85 x 97.5 x 170.4 mm Weight : 630g |
| Environment | Temperature Range Operating: 0°C to +40°C (+32°F to +104°F) Storage: -10°C to +60°C (+14°F to +140°F)Humidity Operation: 10% to 80% relative humidity, non-condensing Storage: 5% to 90% relative humidity, non-condensing |
| Power Supply | InstaShow Button DC 5V±10%, 0.9AInstaShow Host DC 5V±10%, 1.5A DC Power Jack (micro USB) |

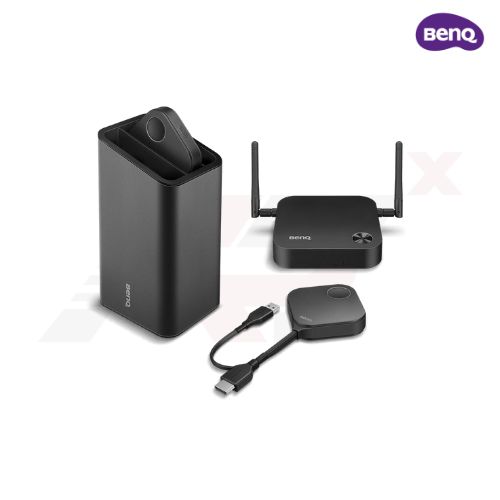

| Package Contents | 1 x Safety Statement 1 x Cradle 1 x USB Extended Cable (15cm) 1 x USB Extended Cable ((80cm) 1 x Quick Start Guilde 2 x InstaShow Button 1 x InstaShow Host 1 x USB Power Cable (150cm, USB Type A 3.0, micro USB) 1 x HDMI Cable (80cm) 2 x Antenna (Black) 1 x Adapter 1 x Velcro Strap (black) 1 x Double-side Sponge Tap 4 x Rubber Feet 4 x Screws |
| Package Dimension | (W x D x H) : 17.00 x 34.00 x 14.00 cm |
| Gross Weight | 2.11 KG |
| Volume | 8,092.00 cm3 |
