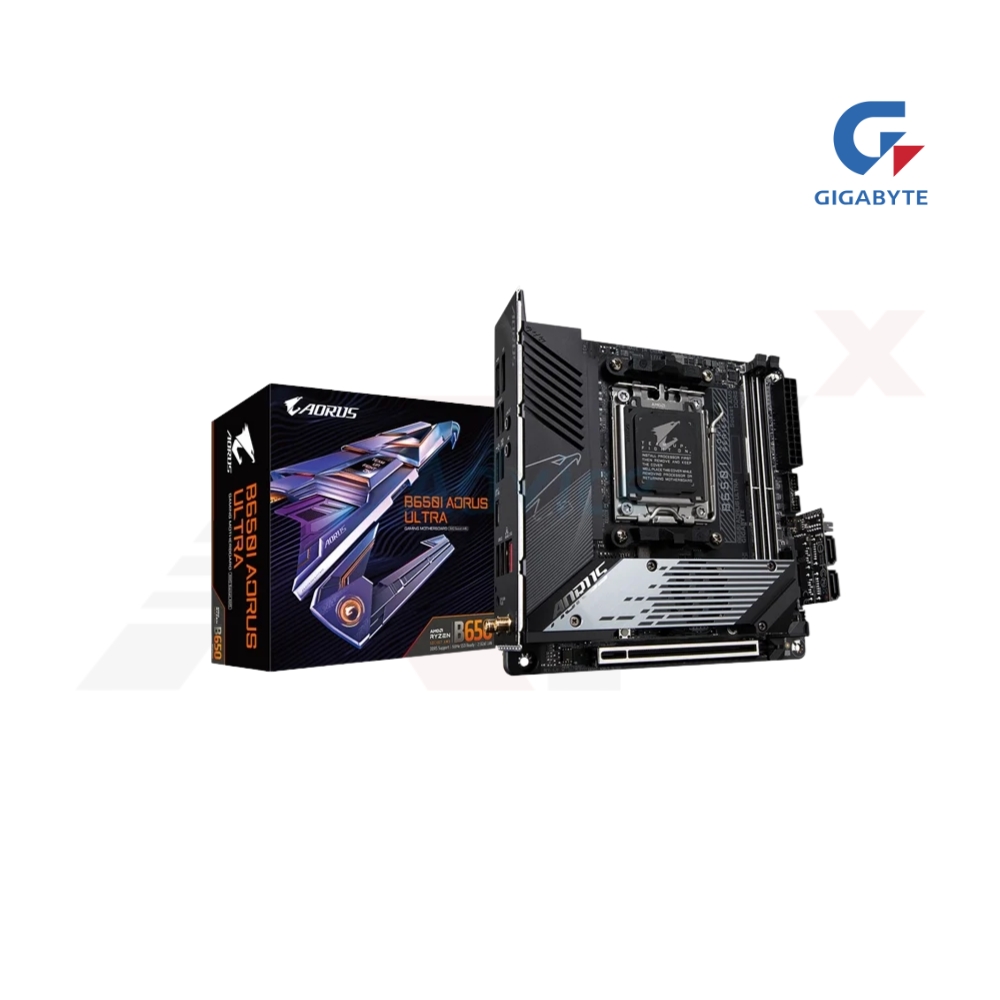

เมนบอร์ด GIGABYTE B650I AORUS ULTRA Mini ITX รองรับ Ryzen 7000

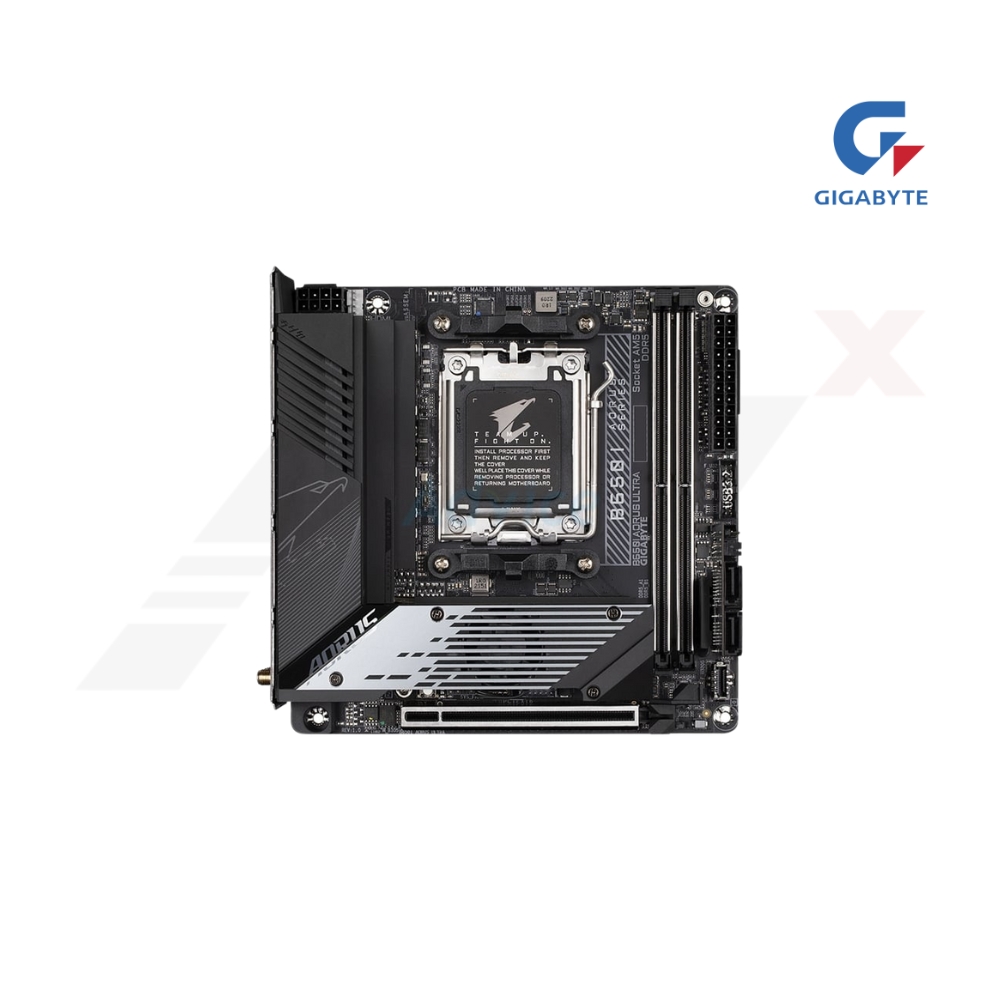

MAINBOARD (AM5) GIGABYTE B650I AORUS ULTRA DDR5 (REV. 1.0) - Image 2

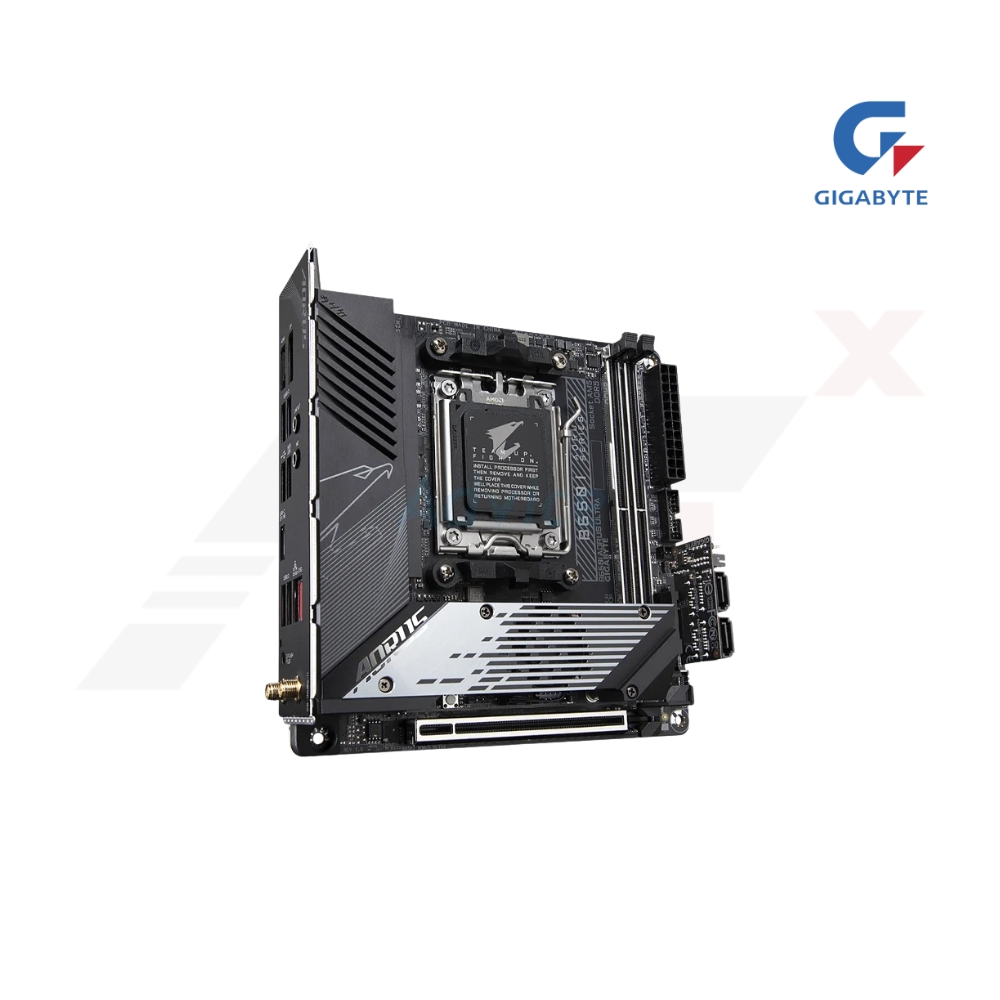

MAINBOARD (AM5) GIGABYTE B650I AORUS ULTRA DDR5 (REV. 1.0) - Image 3
เมนบอร์ด GIGABYTE B650I AORUS ULTRA Mini ITX รองรับ Ryzen 7000

MAINBOARD (AM5) GIGABYTE B650I AORUS ULTRA DDR5 (REV. 1.0)

10,271 บาท

  • Support CPU : AMD Ryzen™ 7000 Series Processors
  • From Factor : Mini ITX
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 6400(O.C.)
  • Memory MAX : 96GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5GbE LAN
  • Wireless : Wi-Fi 6E
  • Unparalleled Performance : Direct 8+2+1 Phases Digital VRM Solution
  • AMD EXPO™ & Intel® XMP Memory Module Support
  • Hi-Fi Audio with DTS:X® Ultra : ALC4080 CODEC
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

*ราคานี้ยังไม่รวมภาษีมูลค่าเพิ่ม (VAT 7%)*

หมวดหมู่: Brand:

คำอธิบาย

Brand GIGABYTE
Model B650I AORUS ULTRA (Rev1.0)
CPU Support AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)
CPU Brand AMD
Socket AM5
Chipset AMD B650
Memory Support
  1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 6400
Graphics Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support N/A
Audio Realtek® ALC4080 CODEC
High Definition Audio
2-channel
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Maximum PCIe Version PCIe 4.0
Storage CPU:
1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
* Actual support may vary by CPU.

1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)

4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 3
USB CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG

Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header (SYS_FAN1(Note 1))
1 x addressable LED strip header(Note 2)
1 x RGB LED strip header(Note 1)
3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))
4 x SATA 6Gb/s connectors(Note 1)
1 x front panel header(Note 1)
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header(Note 2)
1 x reset button(Note 2)
1 x reset jumper
1 x power switch jumper1 x Clear CMOS jumper

(Note 1) The connector is on the front of GC-B650I FRONT CARD.
(Note 2) The connector is on the front of GC-B650I BTB PLUG.
(Note 3) The connector is on the back of GC-B650I BTB PLUG.
(Note 4) The connector is on the back of the motherboard.
Back Panel Connectors 1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
2 x audio jacks
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network AMD Wi-Fi 6E RZ616 (MT7922A22M)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Form Factor Mini ITX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
