เมนบอร์ด AFOX A320D4-MA5-V2 รองรับ AMD Ryzen พร้อม M.2

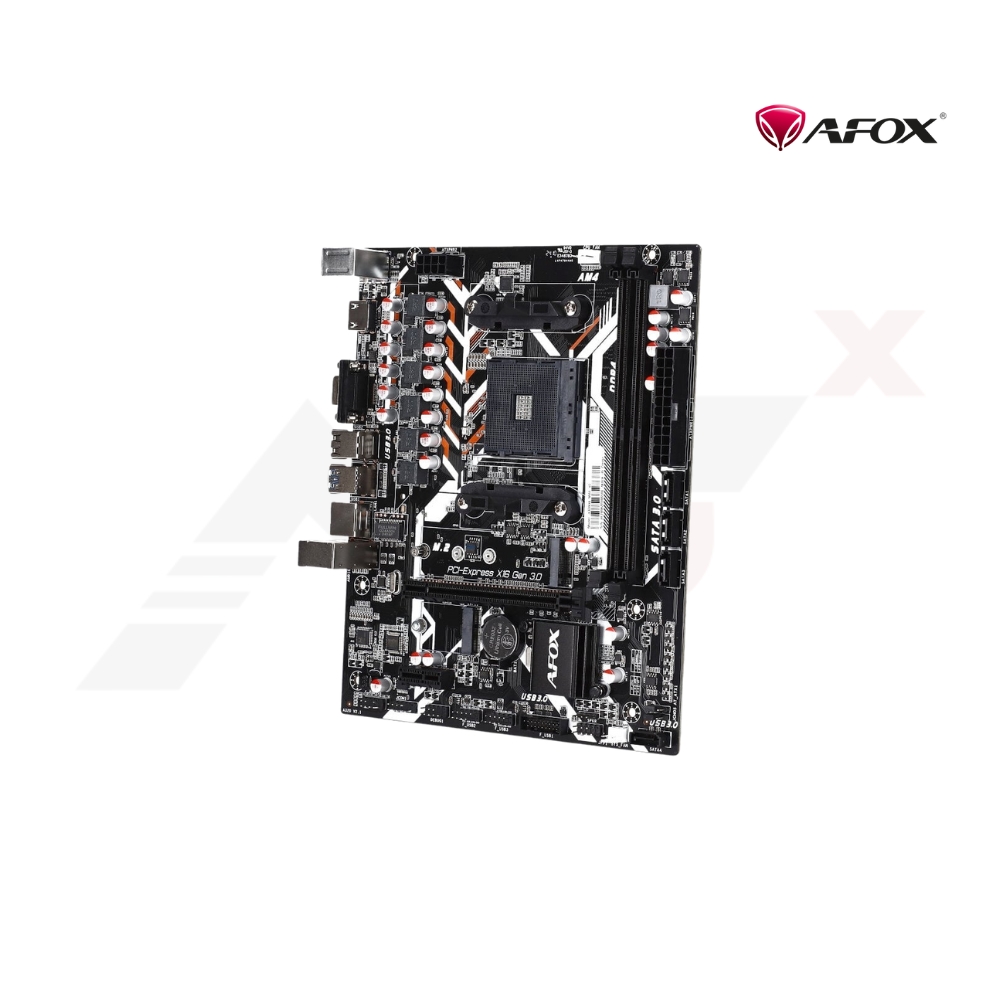

MAINBOARD (AM4) AFOX A320D4-MA5-V2 DDR4 - Image 2

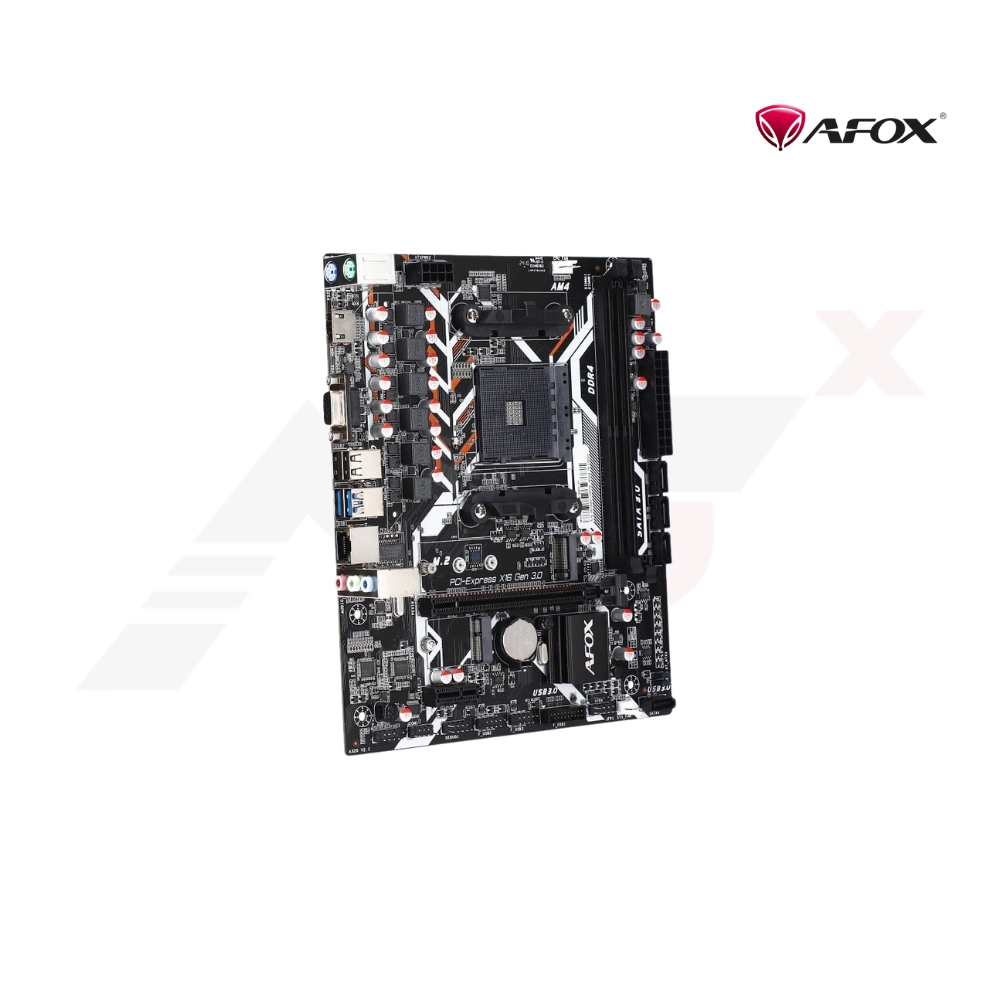

MAINBOARD (AM4) AFOX A320D4-MA5-V2 DDR4 - Image 3

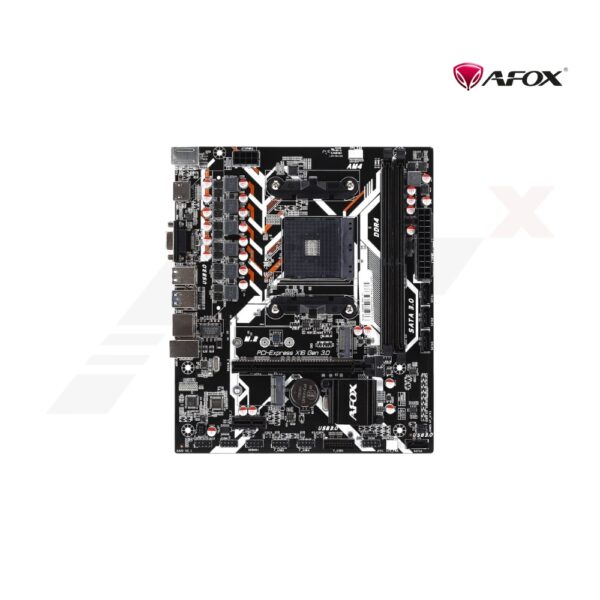

MAINBOARD (AM4) AFOX A320D4-MA5-V2 DDR4 - Image 4
เมนบอร์ด AFOX A320D4-MA5-V2 รองรับ Ryzen มี M.2 และ LAN Gigabit

MAINBOARD (AM4) AFOX A320D4-MA5-V2 DDR4

1,486 บาท

  • Support CPU : AMD Ryzen 5000 Series / Ryzen 5000G Series / Ryzen 4000G Series and Ryzen 3000 Series processors
  • Form Factor : Micro ATX
  • Chipset : AMD A300 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 3000(O.C.)
  • Memory MAX : 32GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • High quality audio special capacitor+independent audio block LED isolation line
  • Design of Gigabit high-speed network card
  • Release long-term performance, with both stability and longevity

*ราคานี้ยังไม่รวมภาษีมูลค่าเพิ่ม (VAT 7%)*

หมวดหมู่: , Brand:

คำอธิบาย

Brand AFOX
Model A320D4-MA5-V2
CPU Support Supports AMD Ryzen 5000 Series / Ryzen 5000 G Series / Ryzen 4000 G Series and Ryzen 3000 Series processors
CPU Brand AMD
Socket AM4
Chipset AMD A300
Memory Support 2 x Memory Slots (Max. capacity of system memory 32GB)
Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz 1.2V
Maximum Memory Bus 3000
Graphics Integrated AMD Radeon™ Vega series / R Series graphics
Multi Graphic Support None
Audio Realtek 662/897 on board
Supports 6-channel audio-out
Expansion Slots 1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot
Maximum PCIe Version PCIe 3.0
Storage 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
4 x SATA3
M.2 Storage Type Support NVMe, SATA
M.2 Slot 1
USB 2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
Internal I/O Connectors 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x Front Panel COM pinheader

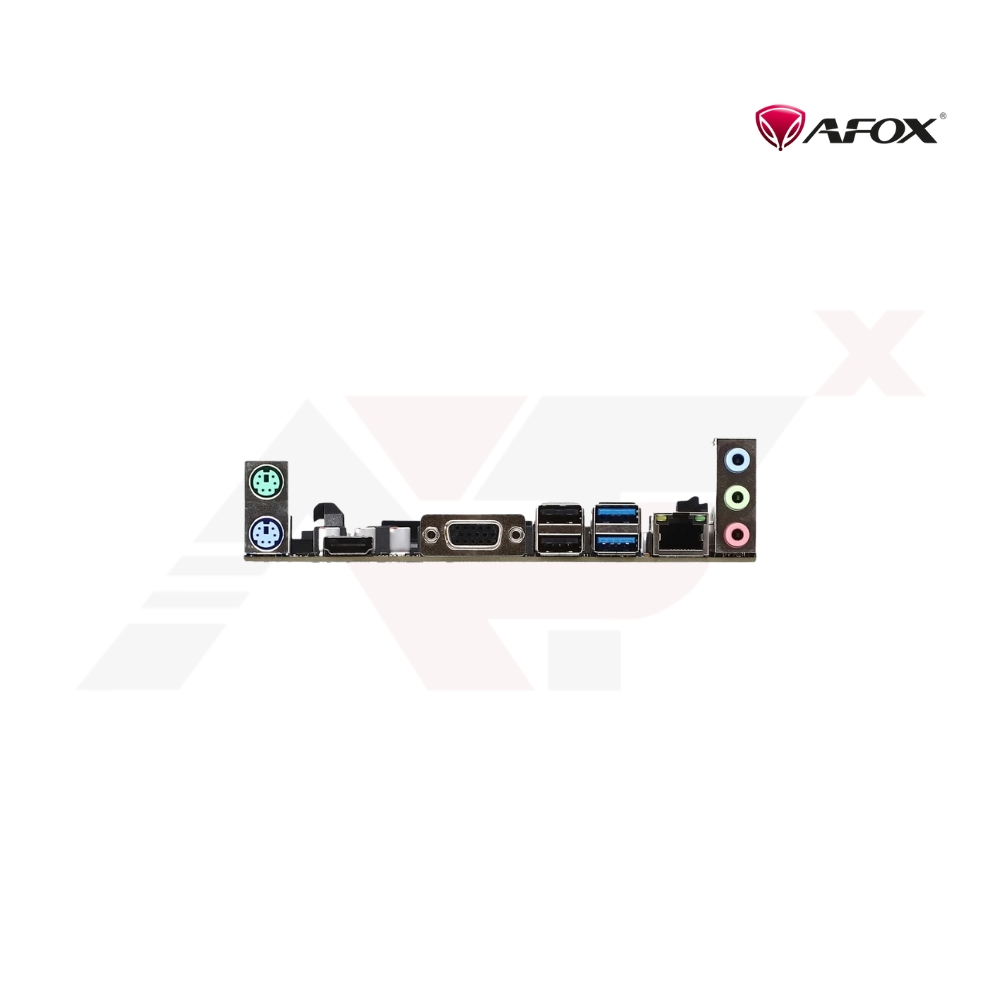

Back Panel Connectors 1 x HDMI Port
1 x D-Sub (VGA) Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)
LAN Realtek RTL8111 1000Mbps Ethernet on board
Wake-On-LAN
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS UEFI BIOS
Special Features N/A
Software Features N/A
Operating System Support N/A
Package Contents 1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
