คำอธิบาย
| Brand | GIGABYTE |

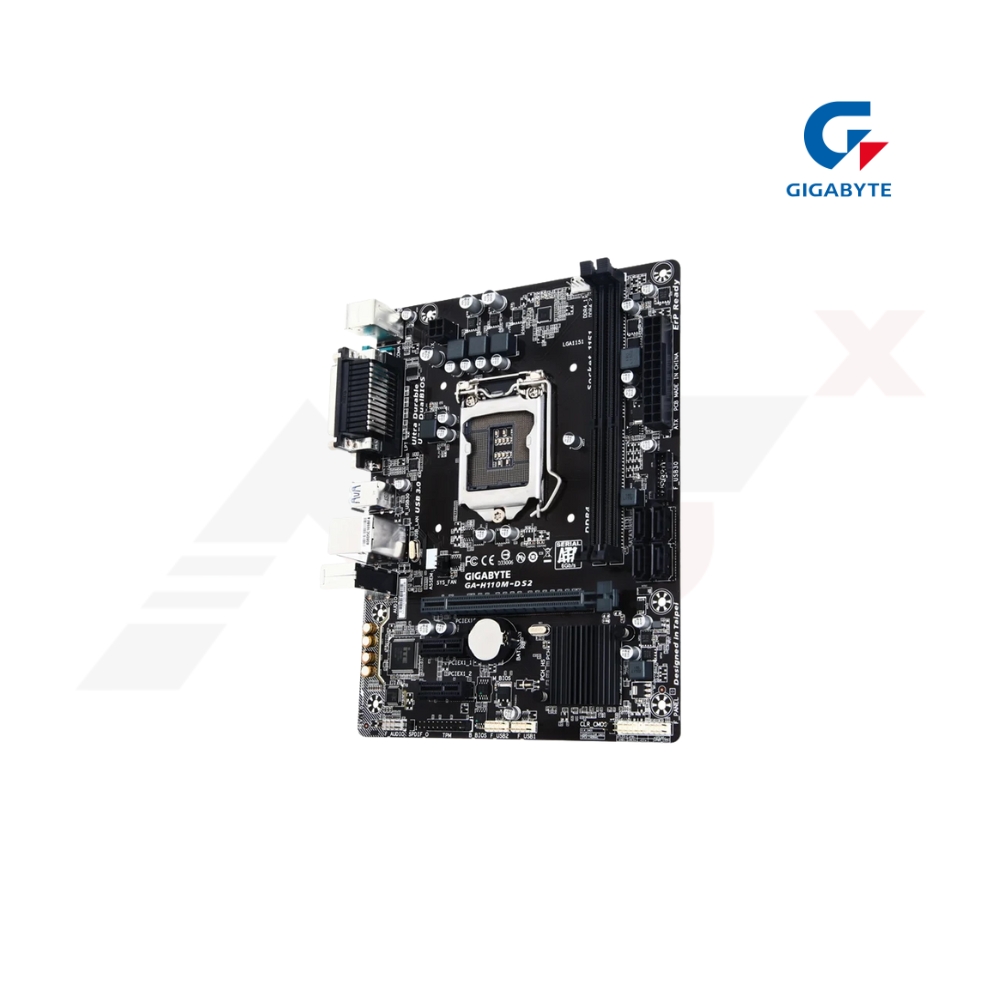

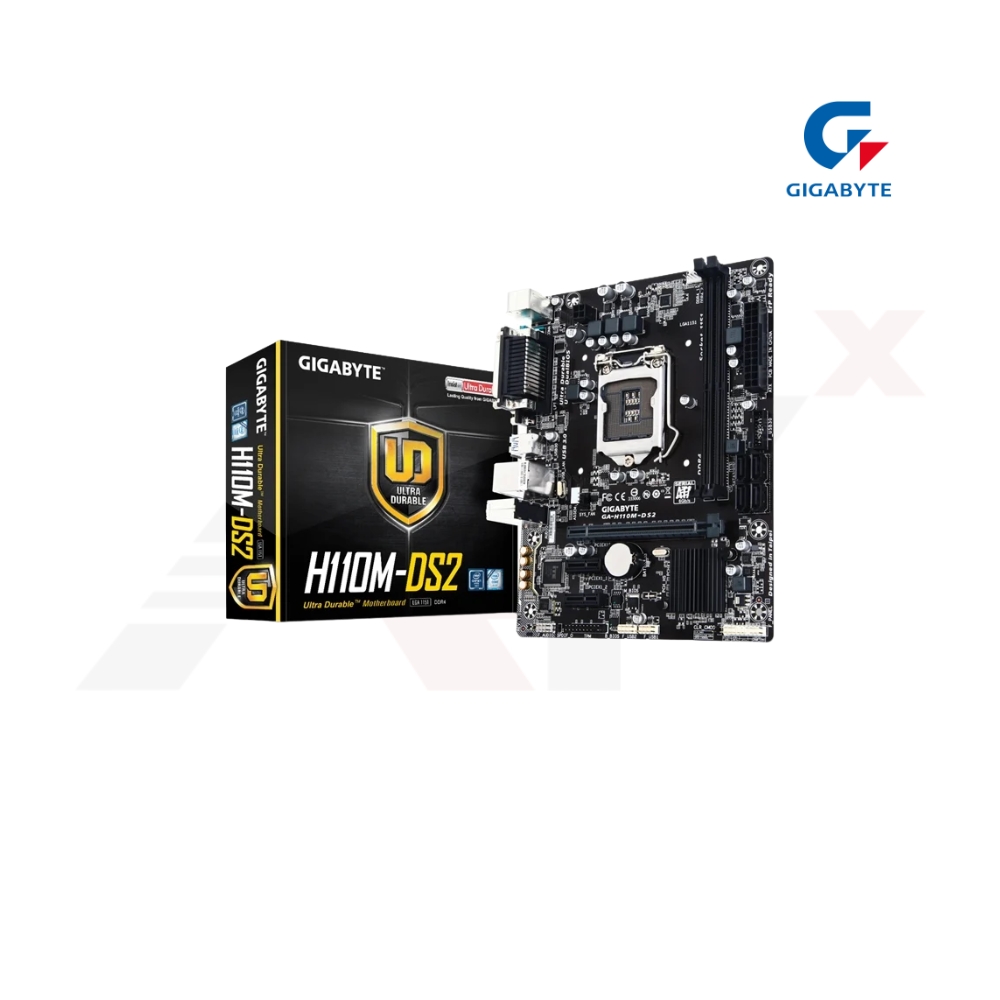

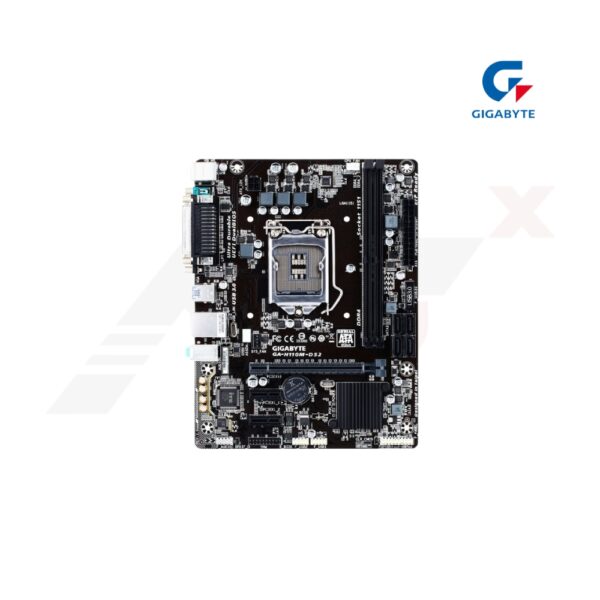

| Model | GA-H110M-DS2 (rev. 1.3) |
| CPU Support | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.L3 cache varies with CPU (Please refer “CPU Support List” for more information.) |
| CPU Brand | Intel |
| Socket | 1151 |
| Chipset | Intel H110 |
| Memory Support | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer “Memory Support List” for more information.) |
| Maximum Memory Bus | 32 GB |
| Graphics | Integrated Graphics Processor – Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 HzMaximum shared memory of 1024 MB |
| Multi Graphic Support | None |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Maximum PCIe Version | PCIe 3.0 |
| Storage | Chipset: 4 x SATA 6Gb/s connectors |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |

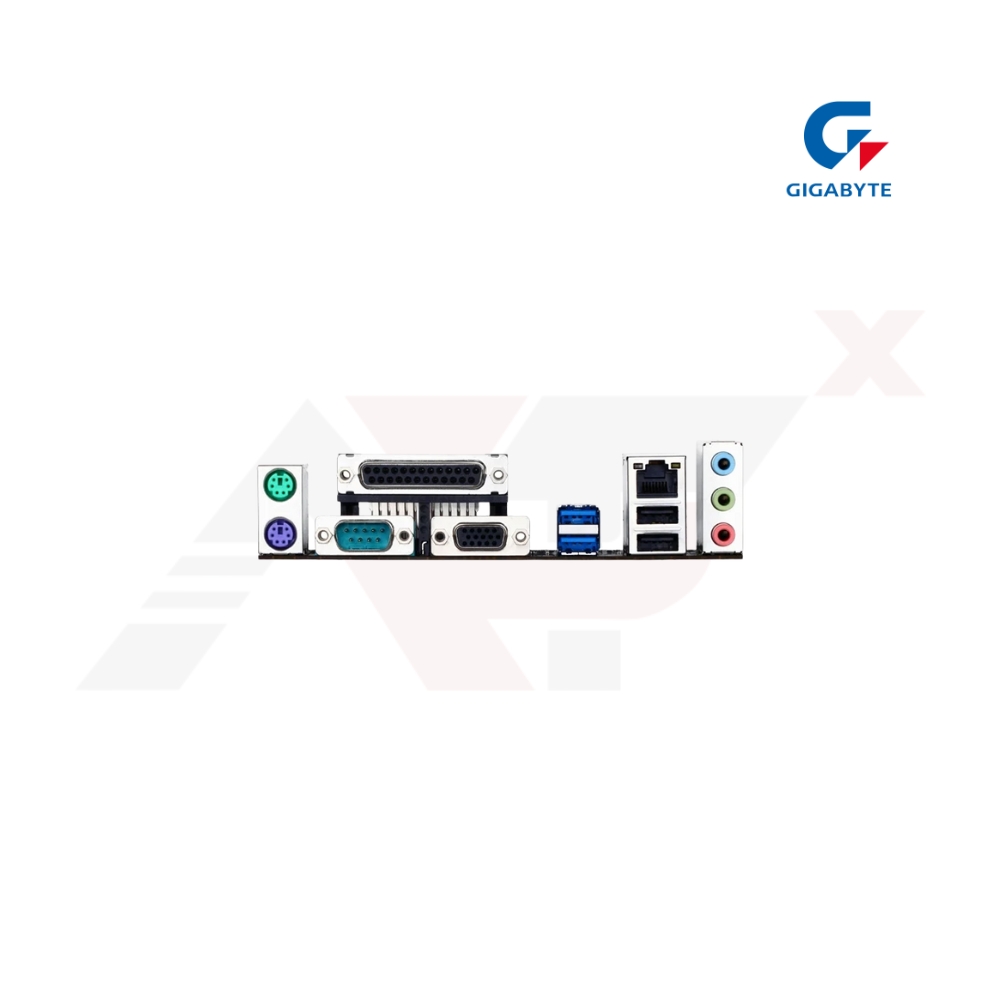

| Back Panel Connectors | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information ViewerSupport for Q-Flash Support for Xpress Install |
| Software Features | Norton® Internet Security (OEM version) cFosSpeed |
| Operating System Support | Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. |
| Package Contents | N/A |
| Package Dimension | (W x D x H) : 23.50 x 27.00 x 5.00 cm |
| Gross Weight | 0.00 KG |
| Volume | 3,172.50 cm3 |
